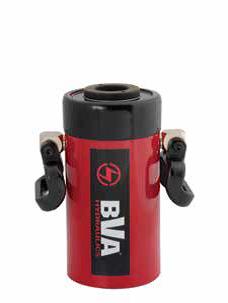

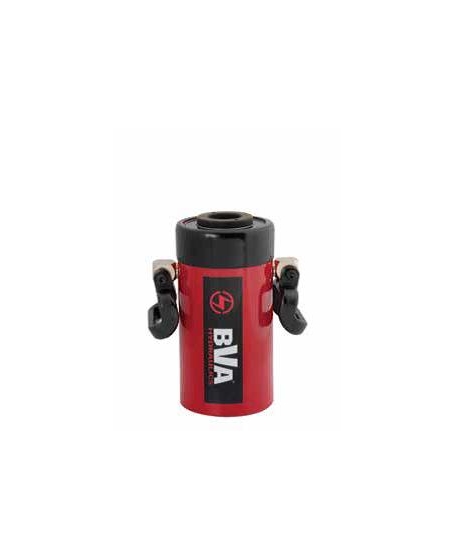

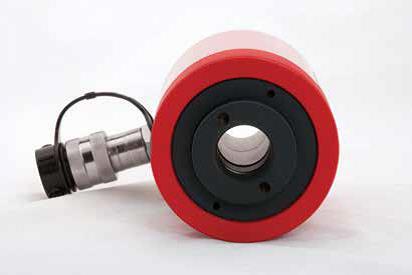

BVA Hydraulics Hollow Hole Cylinders HC1203XT (12 ton)
SKU : bvahc1203xt
Price :
RM 2,368.00
Hydraulic Hollow Hole Cylinder
| Cylinder Capacity (tons) | 12 |
| Stroke (in) | 2.99 |
| Model Number | HC1203XT |
| Cylinder Effective Area (in2) | 2.91 |
| Internal Pressure at Capacity (psi) | 8.236 |
| Oil Capacity (in3) | 8.72 |
| Weight (lbs) | 8.6 |

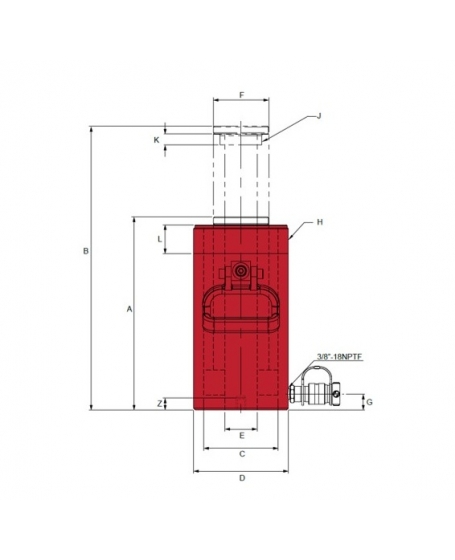

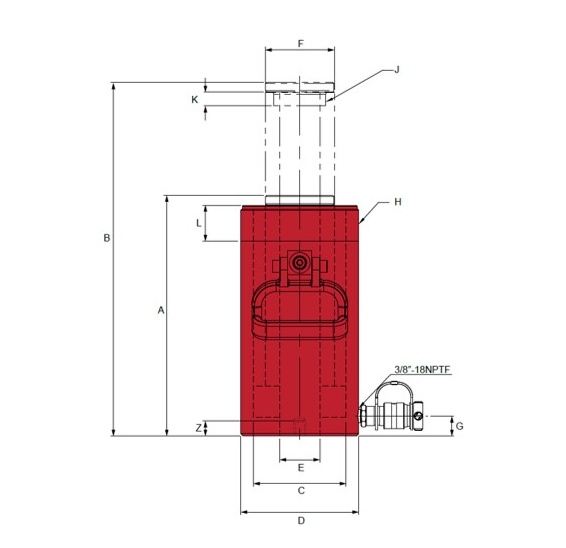

| Collapsed Height A (in) | 7.24 |
| Extended Height B (in) | 10.24 |
| Bore Diameter C (in) | 1.92 |
| O.D. D (in) | 2.76 |
| Model Number | HC1203XT |
| I.D. e (in) -Rod | 0.77 |
| O.D. f (in) -Rod | 1.38 |
| Internal Thread J (in) -Rod | 3/4" -16UN |
| Internal Thread Length K (in) -Rod | 0.63 |
| Diameter H (in) -Collar Thread | 2 3/4" -16 |
| Length L (in) -Collar Thread | 1.81 |
| Base to Inlet Port G (in) | 0.75 |

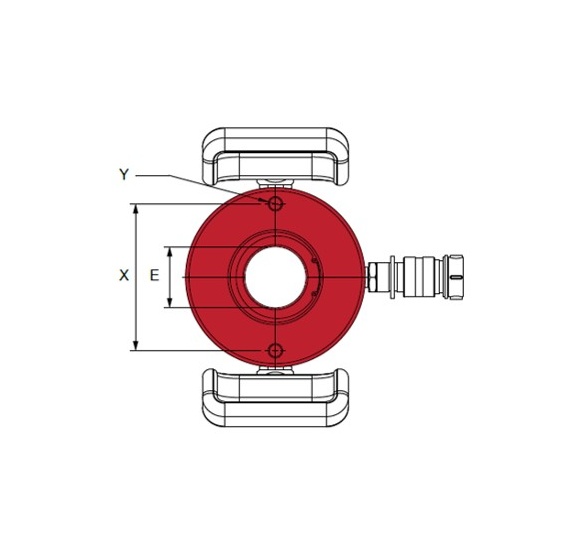

| Bolt Circle X (in) -Base Mounting Hole | 2.00 |
| Thread Y (in) -Base Mounting Hole | 5/16" -18UNC |
| Thread Depth Z (in) -Base Mounting Hole | 0.35 |
