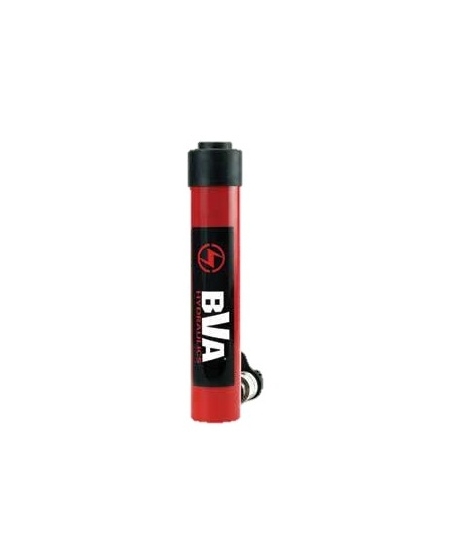

BVA Hydraulics Single Acting Cylinders H1006 (10 ton)
SKU : bvah1006
Price :
RM 1,058.00
General purpose, Spring Return Single Acting Cylinders
| Cylinder Capacity (ton) | 10 |
| Stroke (in) | 5.94 |
| Model Number | H1006 |
| Collapsed Height (in) | 9.84 |
| Cylinder Effective Area (in2) | 2.24 |
| Internal Pressure at Capacity (psi) | 8,928 |
| Oil Capacity (in3) | 13.30 |
| Weight (lbs) | 9.5 |

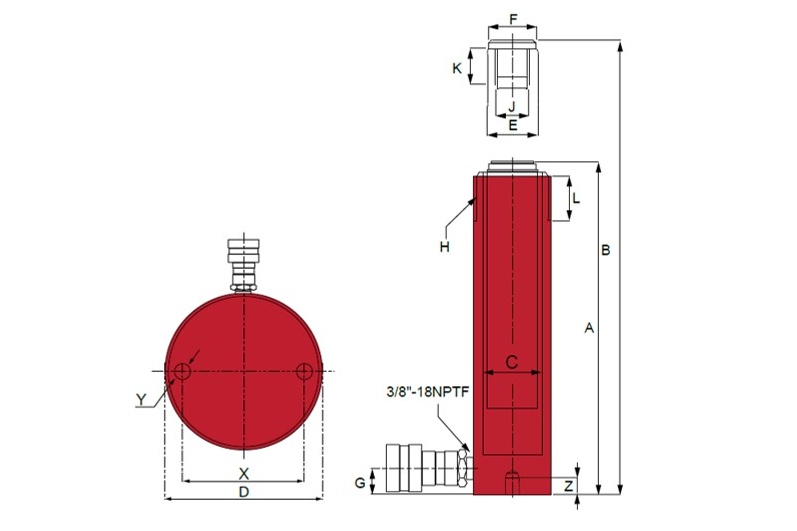

| Model Number | H1006 |

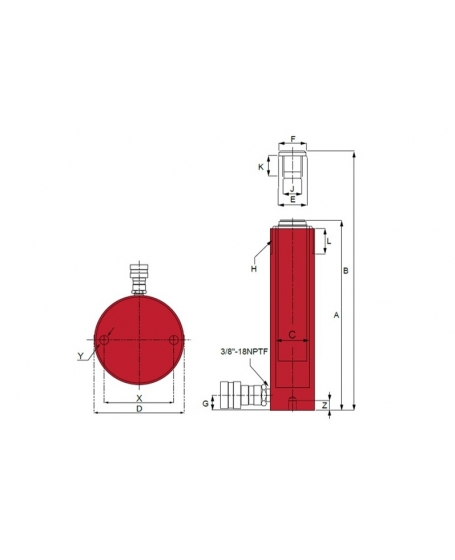

| Collapsed Height A (in) | 9.84 |
| Extended Height B (in) | 15.78 |
| Cylinder Bore C (in) | 1.69 |
| Outside Dia. D (in) | 2.26 |
| Rod Dia. E (in) | 1.49 |
| Saddle Dia. F (in) | 1.38 |
| Base to Inlet Port G (in) | 0.77 |
| Collar Thread H (in) | 2 1/4" -14 |
| Collar Thread Length L (in) | 1.18 |
| Rod Internal Thread J (in) | 1" -8UNC |
| Rod Thread Length K (in) | 0.79 |
| Base Mounting Hole (in) - Bolt Circle X | 1.56 |
| Base Mounting Hole (in) - Thread Y | 5/16" -18UNC |
| Base Mounting Hole (in) - Thread Depth Z | 0.55 |
